ALTA o6

  • ALTA o6 in light bronze. Metal finish code : 28
  • ALTA o6 in light bronze. Metal finish code : 28. View with two clips
  • ALTA o6 in light bronze. Metal finish code : 28. Back view
  • ALTA o6 in light bronze. Metal finish code : 28. Back view
  • ALTA o6 in light bronze. Metal finish code : 28
  • ALTA o6 in brushed bronze. Metal finish code : 29
  • ALTA o6 in brushed bronze. Metal finish code : 29
  • ALTA o6 in brushed brass. Metal finish code : 25
  • ALTA o6 in brushed brass. Metal finish code : 25. Back view
  1. Image 1 .
  2. Image 2 .
  3. Image 3 .
  4. Image 4 .
  5. Image 5 .
  6. Image 6 .
  7. Image 7 .
  8. Image 8 .
  9. Image 9 .

ALTA is an extraordinary ceiling spotlight
With a choice of original, remarkable finishes and a resolutely contemporary design, it dresses a ceiling with elegance and refinement
It's small, diffuses a powerful warm light and fits easily into the opening of a traditional recessed spotlight
ALTA o6 consists of a spotlight, a ball joint and a base plate in solid brass. It can be directed in any direction and its beam can be narrow or wide

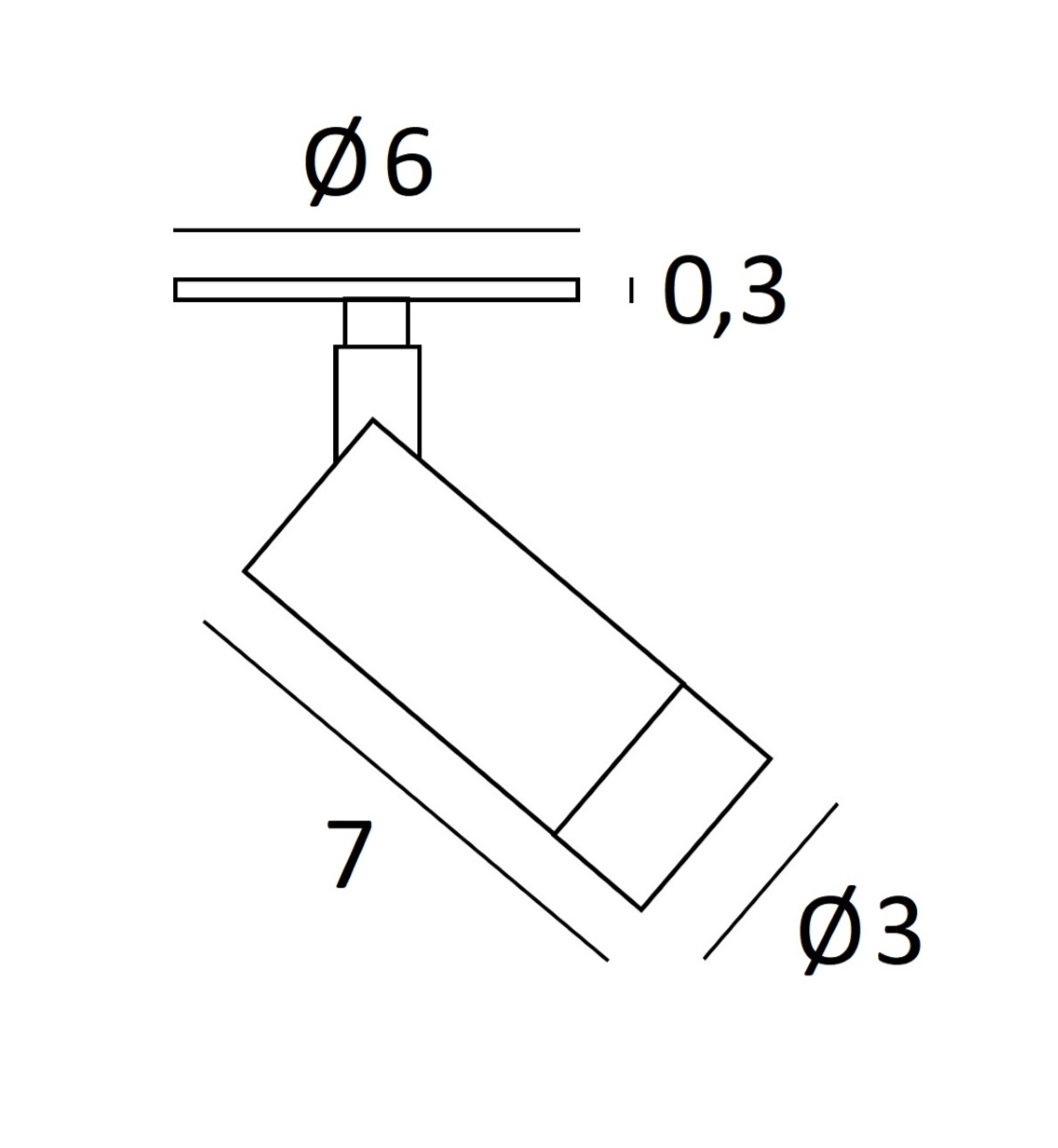

OVERALL SIZES

H5,3 → 9,2cm

Technical Data

Visible round plate (diameter 6cm - thickness 3mm) with two clips for fixing
Integrated LED :  6,85W   19V   350mA   805lm   2700°K   CRI 90   SDCM 3   Beam angle 35°
Spotlight dimensions : Ø3cm   L7cm
Spotlight mounted on a 360° adjustable joint
Delivered with driver :  7W  240V  350mA   not dimmable

INSTALLATION
Cutout size : Ø5cm
Straighten the clips and insert them into the ceiling cutout
Recessed depth : 4,5cm
Thickness of mounting surface : 1mm

​​​​OPTIONS (please contact us)
Beam angles 25° or 60°
Round or square plates in other sizes: 7cm, 8cm, ... (made to measure)
Rectangular plate with two spotlights
Easy to install on an surface mounted base
Driver suitable for dimming

AVAILABLE METAL FINISHES AND CODES
25 - Brushed brass - 5946 025
28 - Light bronze - 5946 028
29 - Brushed bronze - 5946 029
