GALAND J ø
-
GALAND J ø in brushed brass. Metal finish code: 25 -
GALAND J ø in light bronze. Metal finish code: 28 -
GALAND J ø in light bronze. Metal finish code: 28 -
GALAND J ø in light bronze. Metal finish code: 28 -
GALAND J ø in light bronze. Metal finish code: 28 -
GALAND J ø in light bronze. Metal finish code: 28 -
GALAND J ø in brushed bronze. Metal finish code: 29 -
GALAND J ø in brushed bronze. Metal finish code: 29
-
Image 1 .
-
Image 2 .
-
Image 3 .
-
Image 4 .
-
Image 5 .
-
Image 6 .
-
Image 7 .
-
Image 8 .
GALAND J ø is a suspension composed of two lighting elements, little wings in the lower part, which filters the light and creates a discreet atmosphere around the perimeter of the upper part
This luminaire is made entirely of brass by craftsmen, who combine traditional and modern techniques to perfection. A high-quality product available in remarkable finishes

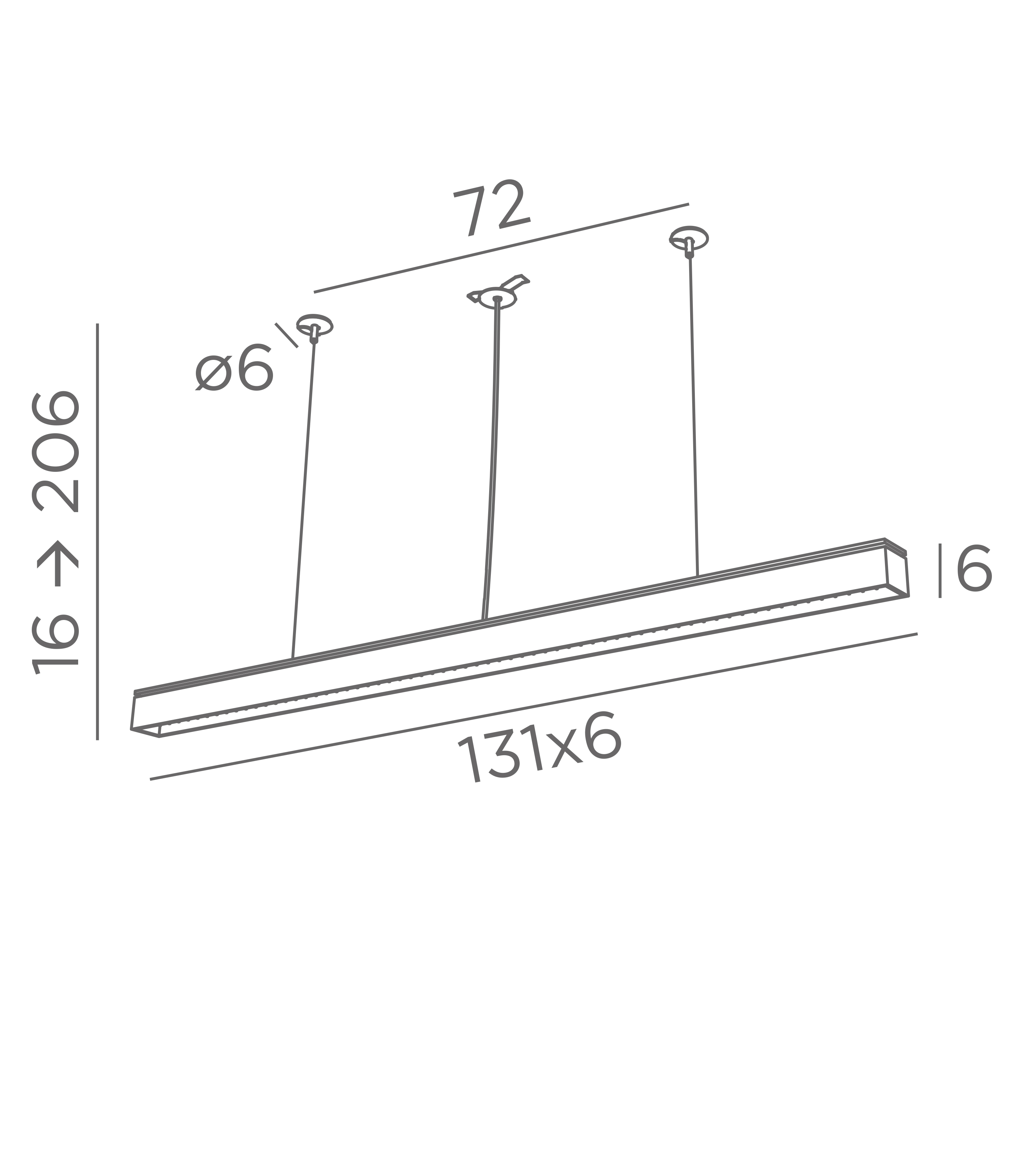

131x6x6cm H25-200cm
Strips LED integrated in the reflector :
consumption 47,50W brightness 4050lm colour temperature 2700°K
Driver : 220V-240V 50-60Hz 50W not dimmable
Dimming with TRIAC (TRIAC driver optional)
Dimming with a DALI interface (optional DALI driver)
Reflector dimensions : L131 x 6cm H6cm
Three decorative plates, Ø6cm (to conceal the fixings and cut-out)
Two steel cables (2m), 72cm distance between them, adjustable in height during assembly
In the centre, a transparent electric cable (2m) with a section of 2x0,75mm²
INSTALLATION ON FALSE CEILING
The two steel cables are fixed to the ceiling with three attachment points
A Ø5cm round cut-out in the centre of the false ceiling to insert the driver
This suspension is available with a visible rectangular box or with telescopic tubes. See GALAND J # or GALAND J tubes
